IMPORTED MACHINE:

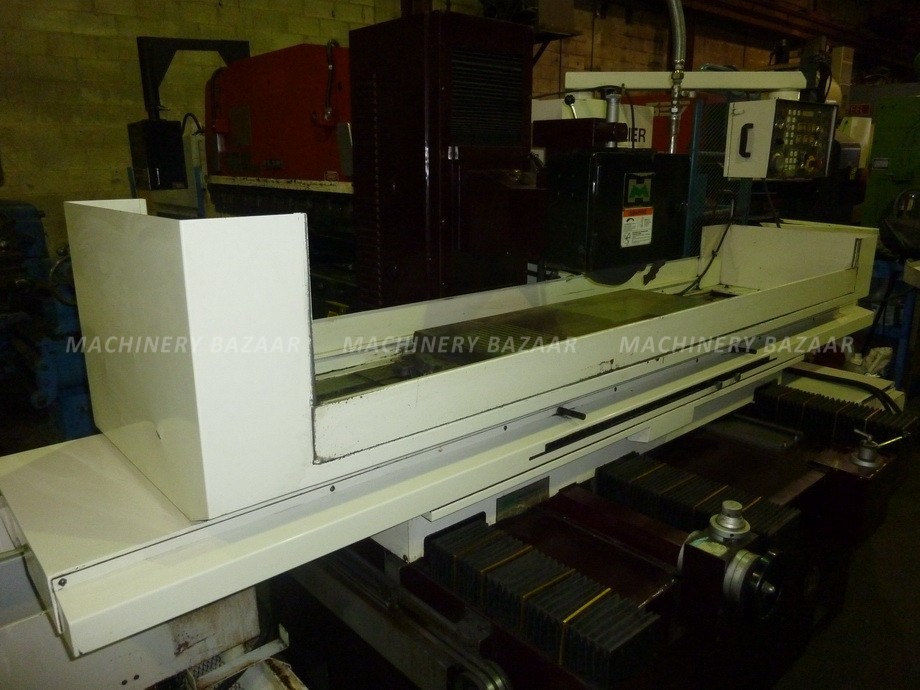

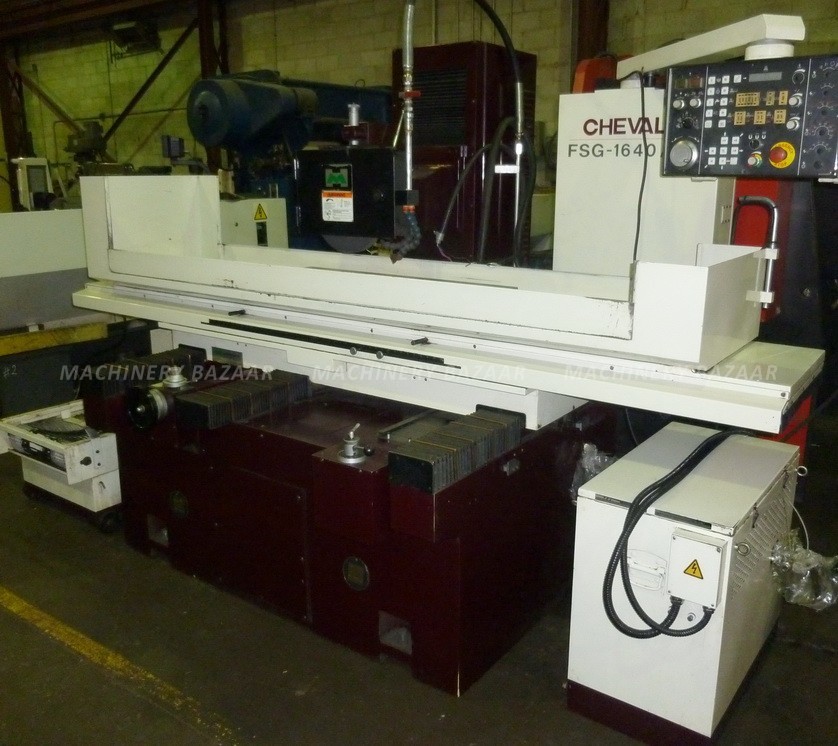

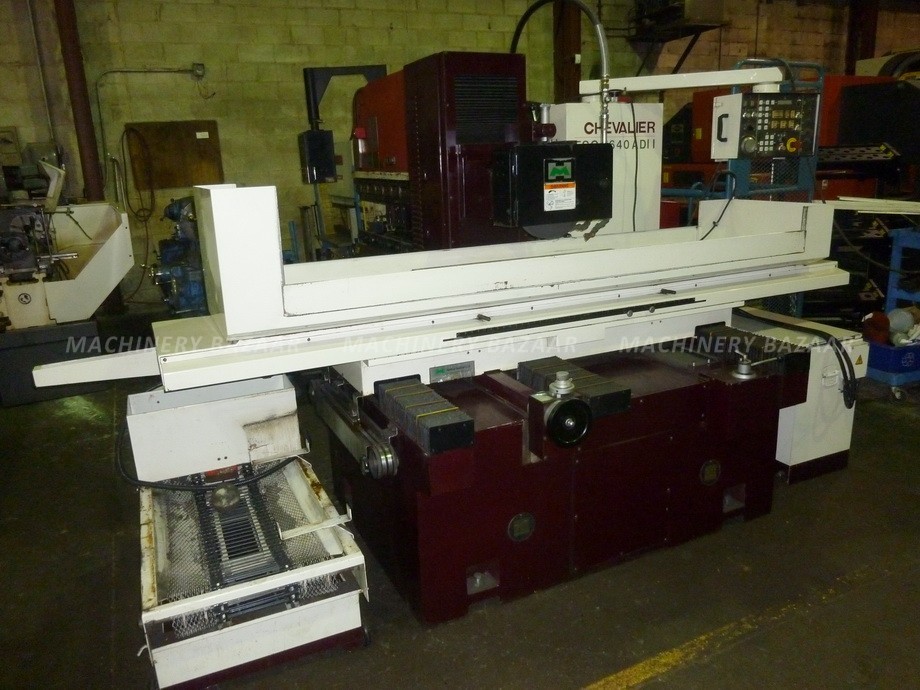

Chevalier FSG 1640 AD II Surface Grinder
Year 2002
Table Size: 1350 x 400mm
Grinding Capacity: 1350 x 400mm
Longitudinal Table Travel, Hydraulic: 1350mm
Longitudinal Table Travel, Manual: 1350mm
Crossfeed Travel, Automatic: 400mm
Crossfeed Travel, Manual: 450mm
Distance from Spindle Center to Table: 600mm
Variable Table Speed, Hydraulic: 16' to 82' FPM
Automatic Crossfeed Increment: 1/8" to 1-1/4"
Crossfeed Handwheel, Per Graduation: 0.0025"
Per Revolution: 0.25"
Microfeed, Per Revolution: 0.0005"
Per Graduation: 0.00005"
Automatic Incremental Downfeed: 0.00005" to .002"
Auto Downfeed Dial Per Graduation: 0.0005"
Per Revolution: 0.05"
Microfeed: 0.00005"/.0001"
Rapid Traverse Rate: 8" IPM
Spindle Motor: 5 HP
Approximate Dimensions: L 4000mm X W 1700mm X H 2300mm
Approximate Weight: 5000 kg
Equipped with:
Hydraulically Acutated Longitudinal Table Feed
Electromechanically Actuated Feed of Saddle
Variable Chuck Control

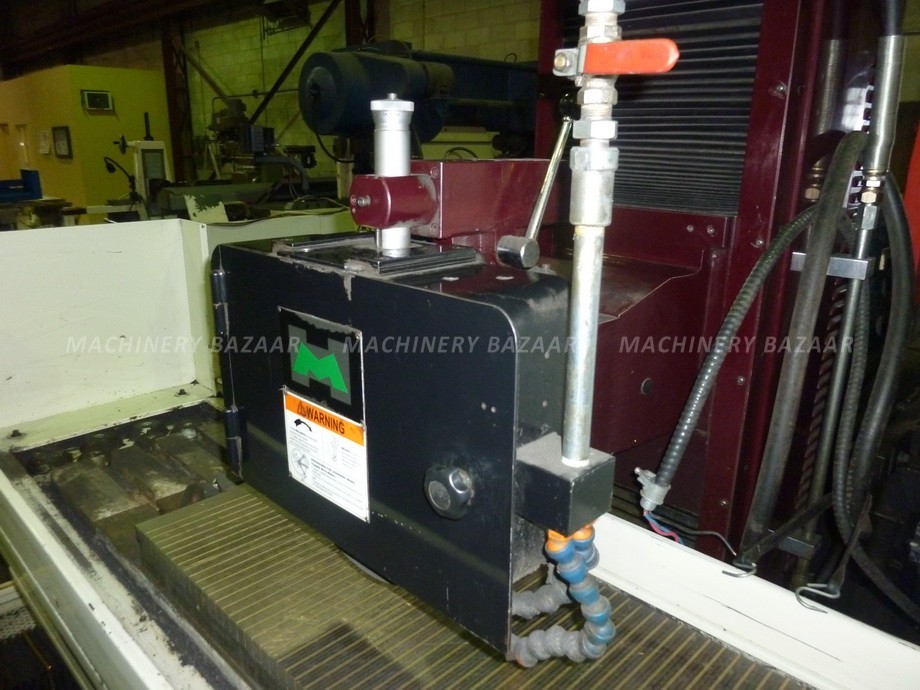

Parallel Dresser Over The Wheel
Auto Lube
Diamond Dresser
Precision Needle Roller Bearings Used on the Elevating Guide Ways
Work Light
Splash Guard

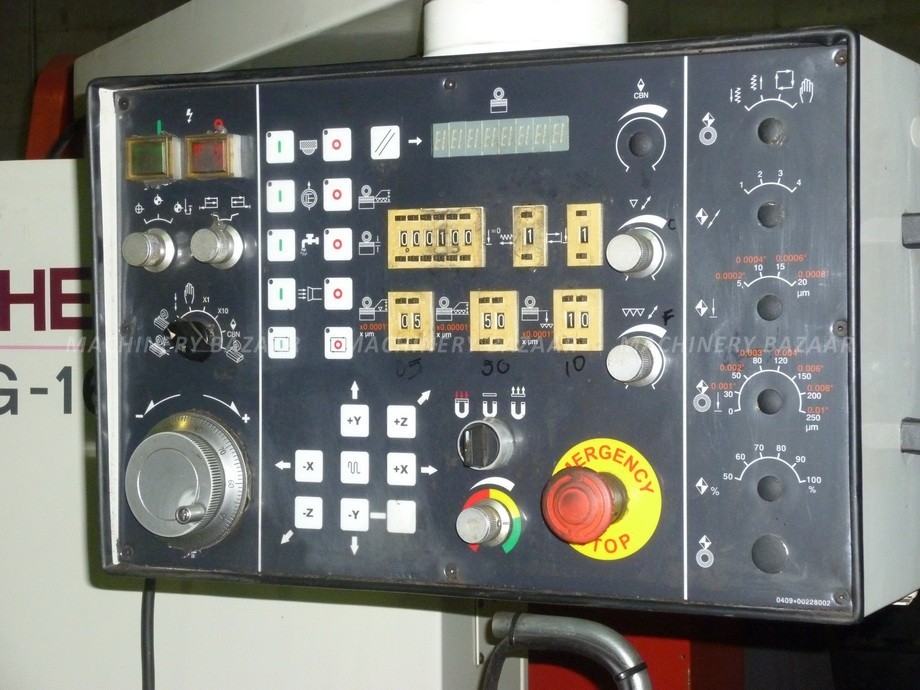

Potentiometer for Variable Holding Power and a Selector Switch for
Automatic Demagnetization of Work Piece
Variable hold neutrofier control
Coolant System w/Paper Filtration (120 Gals. Cap.)
External Hydraulic Pump and Tank
5 HP 3/60/230-460 Volt Drive Spindle Motor
Machine in Excellent condition, Like new
Price £12,000 GBP Including shipping.
(Note:- Price may vary according to currency rate)
