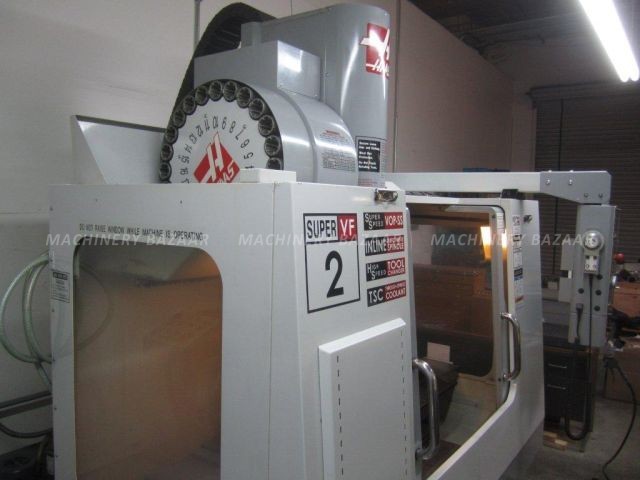

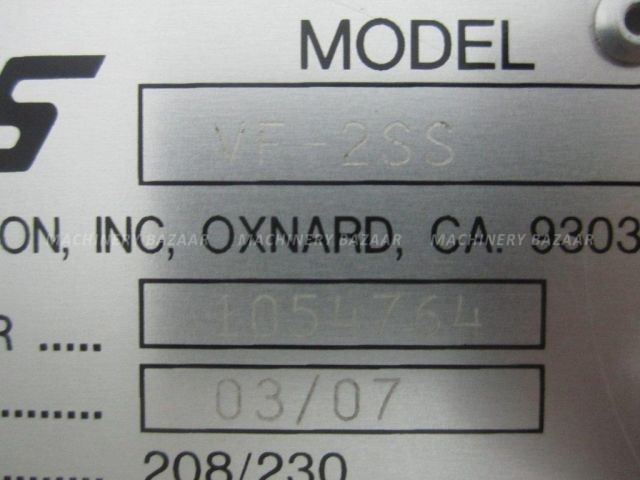

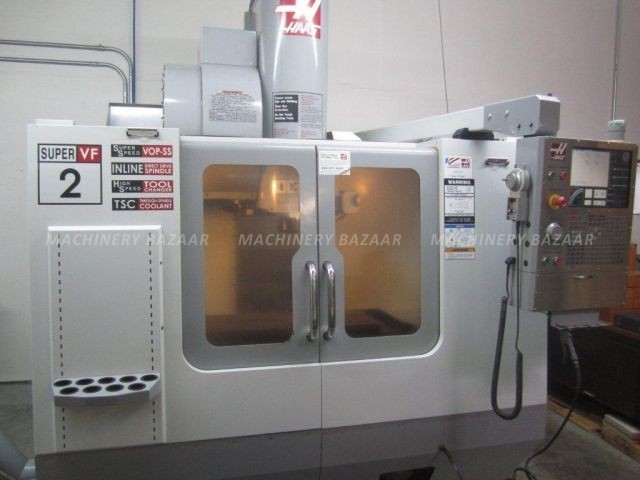

HAAS VF-2SS
Year 2007
4 Axis CNC Vertical Machining Center
X-Axis Travel: 30"
Y-Axis Travel: 16"
Z-Axis Travel: 20"
Spindle Nose to Table: 4" Minimum - 24" Maximum
Table Size: 36" x 14"
T-Slot Width: 5/8"
T-Slot Center Distance: 4.92"
Maximum Weight on Table: 1500 lbs
Motor: 30 HP
Maximum Spindle Speed: 12000 RPM
Spindle Taper: 40 Taper
Feedrates on X, Y, and Z-Axis: 1400 IPM
Maximum Tool Diameter: 5" (Adjacent Empty), 3" (Full)
Maximum Tool Weight: 11"
Tool to Tool Change Time: 1.6 sec
Machine Dimensions (L x W x H) 88" x 92" x 118"
Machine Weight 8000 lbs.
Equipped With

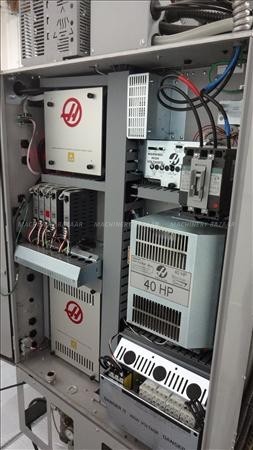

Haas CNC Control
Haas HRT160H 4th Axis
24+1 Capacity Automatic Tool Changer
Haas Probe
w/ Colfire Processor
Chip Auger
Programmable Coolant Nozzle
Coordinate Rotation & Scaling
16 MB Expanded Memory
Coolant Thru Spindle (300 psi)
Rigid Tapping
Remote Jog Handle
High Intensity Lighting
Chip Auger
Auxiliary Coolant Filter
Machine is excellent working condition
Price £23,500 GBP Including shipping.
Dussek Campbell Ltd.
Block 23, Southwick Industrial Estate,
Sunderland. United Kingdom.
Tel: +447404908577
Email: dussekcampbellltd@gmail.com
dussekcampbelltd@gmail.com
