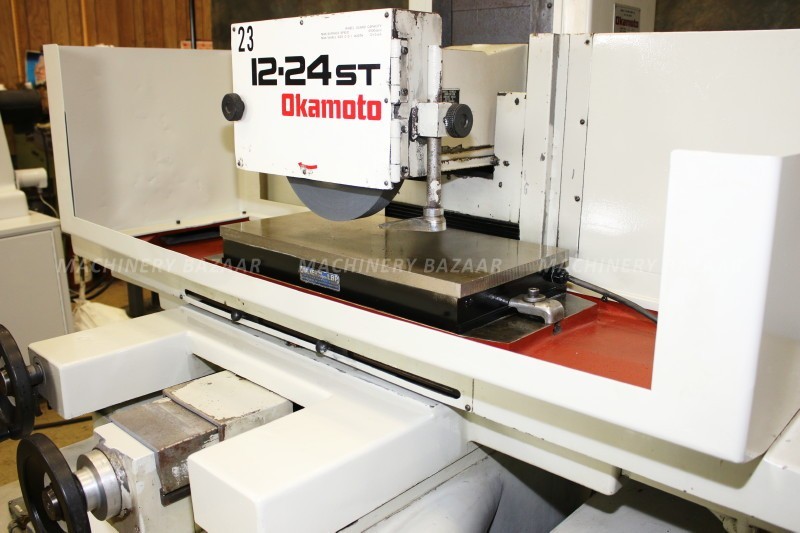

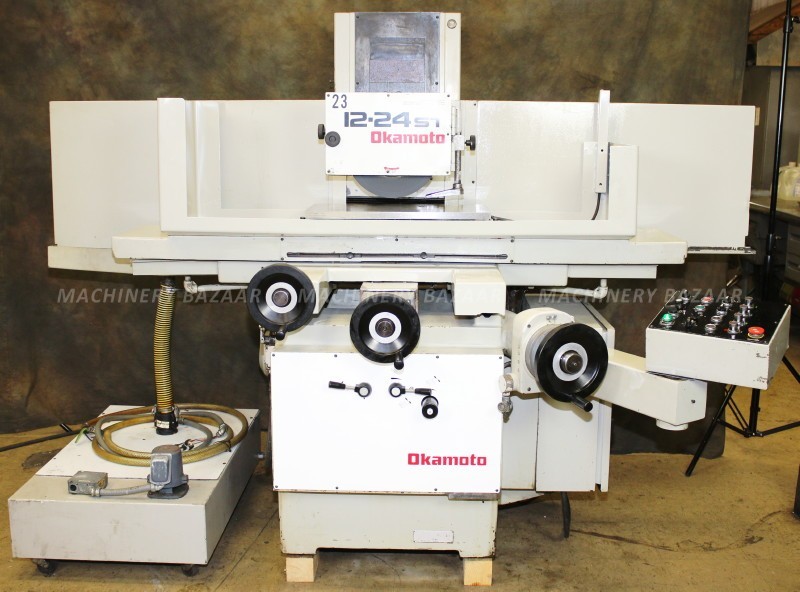

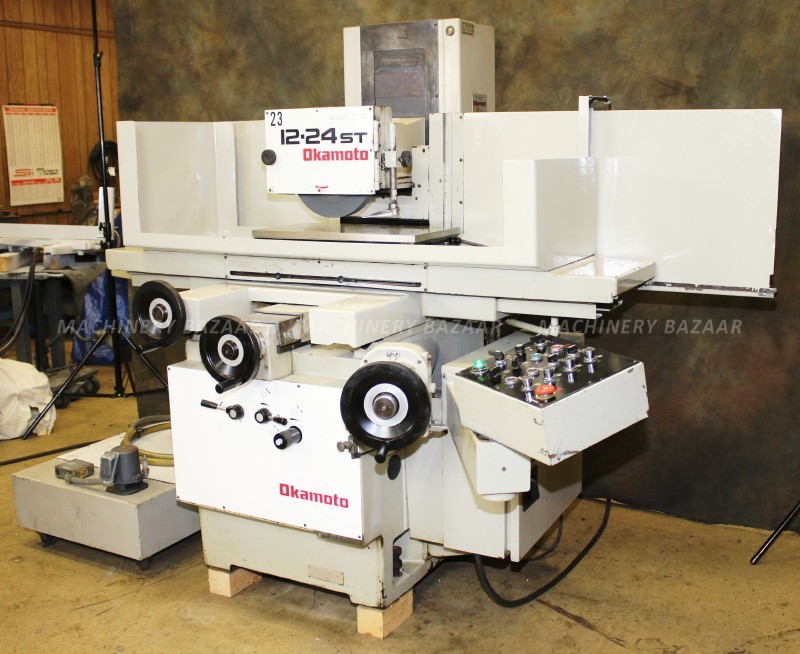

Okamoto ACC 12.24ST Surface Grinder
Year 1998
Grinding Length 24"
Grinding Width 12"
Distance Between Spindle Center to Table Surface 20"
Longitudinal Travel, Manual 29.5"
Longitudinal Travel, Hydraulic 28.0"
Longitudinal Table Speed (infinitely variable) 1 to 82 fpm
Spindle Motor 5HP
Hydraulic pump motor 3 HP
Vertical rapid feed motor 0.5 HP
Grinding Wheel 12" x 1-1/2" x 5"
Crossfeed Travel, Manual 13.6"
Crossfeed Rapid Travel Speed 40.0" Ipm
Auto feed/table stroke 0.0001-" 0.0005"
Auto feed/saddle reversal 0.0001" -0.0015"
Handand feed/revolution 0.05"
Gaduation of wheel 0.0001"
Rapid feedrate 19" Ipm
Wheelhead Infeed (per graduation) 0.0005"
Wheelhead Infeed (per revolution) 0.05"
Machine Weight 4000 Lbs
Dimensions 105" x 75" x 75"
Equipped with
3-Axis fully automatic and plunge grinding system
Spark-out 0-5 times for fine finish
Precision roller bearings on longitudinal and cross feed guiderails
Auto incremental downfeed
12" x 24" Fine magnetic chuck
Hardened and ground cross feed and elevating lead screws
Dust collector
Leveling pads
Work light
Hardened and ground guide ways for durability
Quick table and cross feed stroke adjusting device

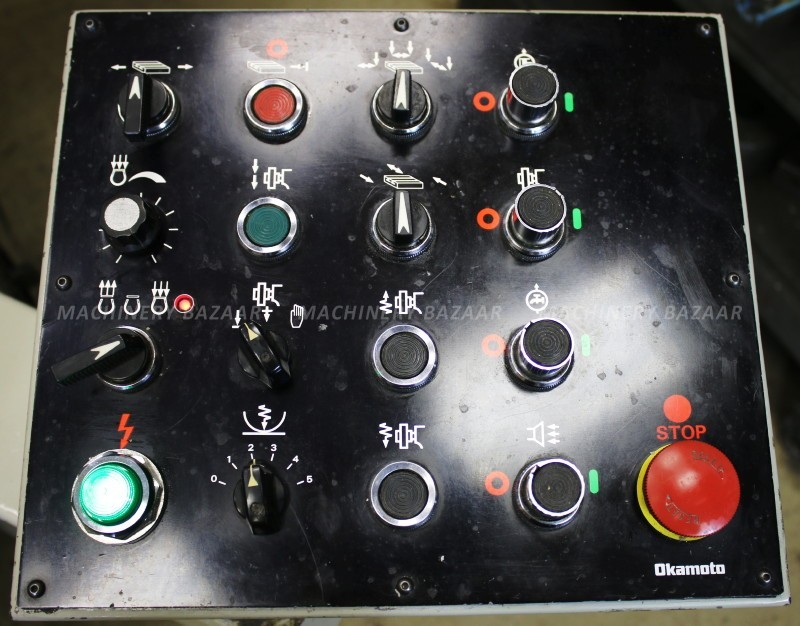

Centralized Operator Control
Coolant System with separator
Hydraulic Pump
Automatic Lubrication System
Machine work perfectly
Price £8500 GBP Including shipping.
Dussek Campbell Ltd.
Block 23, Southwick Industrial Estate,
Sunderland. United Kingdom.
Tel: +447404908577
Email: dussekcampbellltd@gmail.com
dussekcampbelltd@gmail.com
