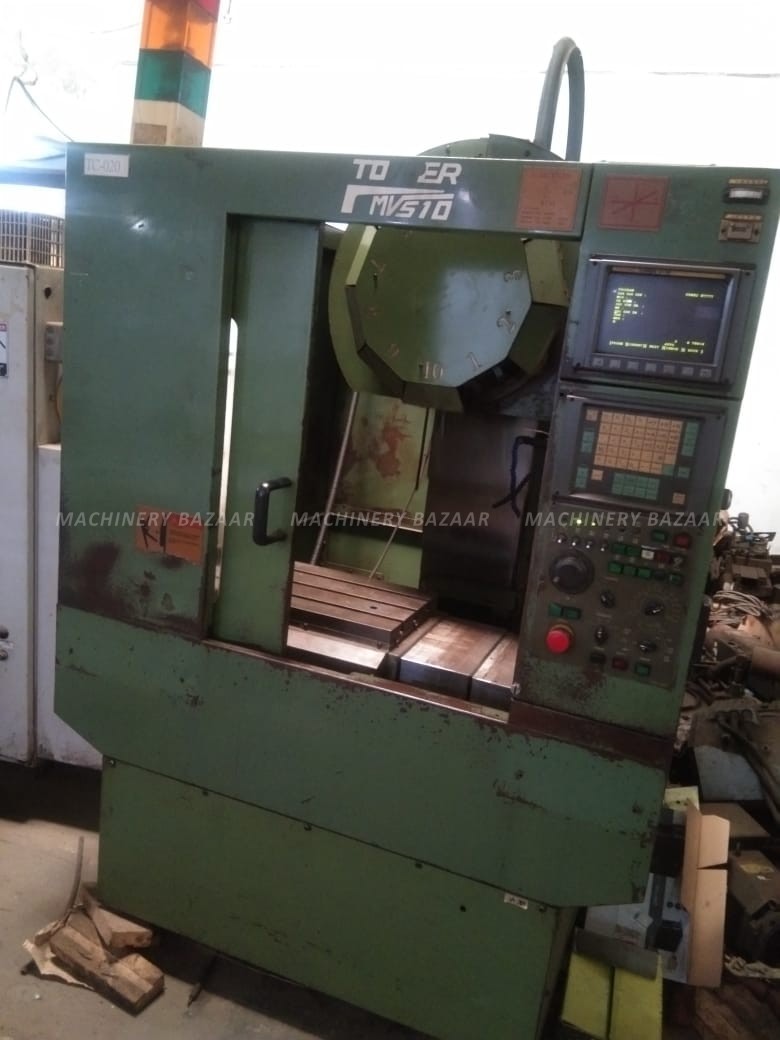

TOPPER TMV - 510
SPECIFICATION:
YOM 1998
Table area. 600 X 360 mm
Table maximum weight bearing capacity.
200kg
• Spindle nose. BT-30
• Spindle speed. 8000 RPM (Max)
• Travels
■ X-Axis. 510 mm
■ Y-Axis. 360 mm
Z-Axis 250 mm
• Rapid feed Rate
X/Y/Z. 36/36/30 m/min
■ Cutting feed Rate. 1-10000 mm/min

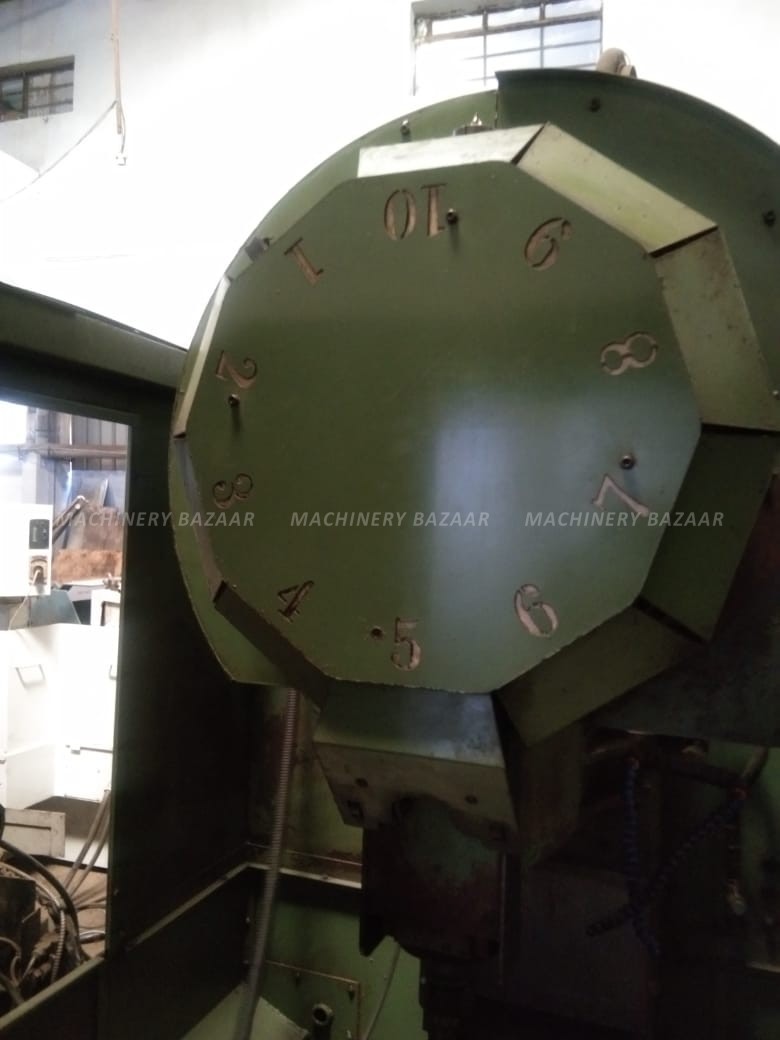

. ATC. 10 tools
- Max Tool Dia. 80 mm
Max Tool Length. 200 mm
Max Tool Weight. 3kg
■ Tool Change Time. 1.5 sec
For further details call/ WhatsApp :- +91 92165 70500
