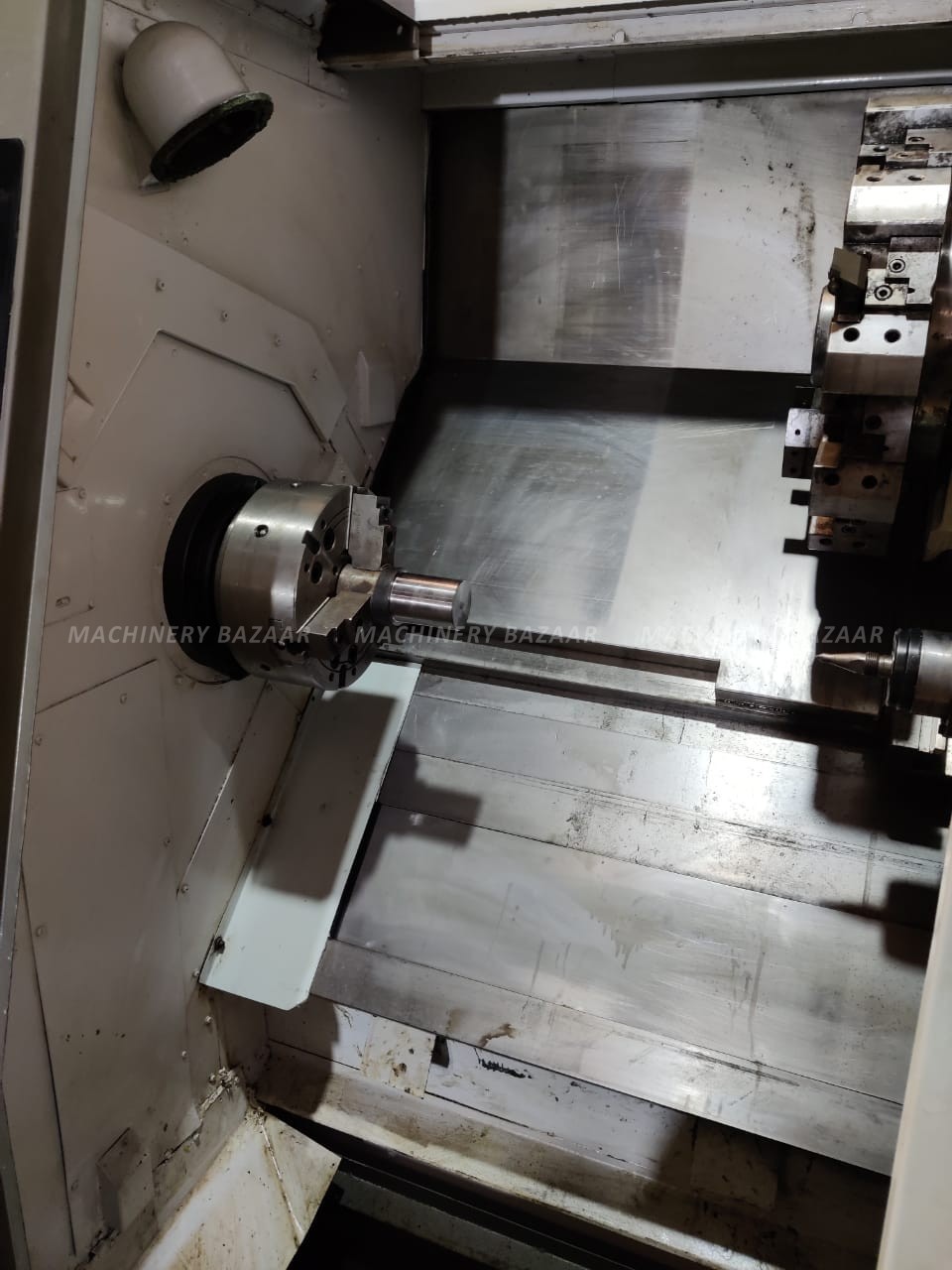

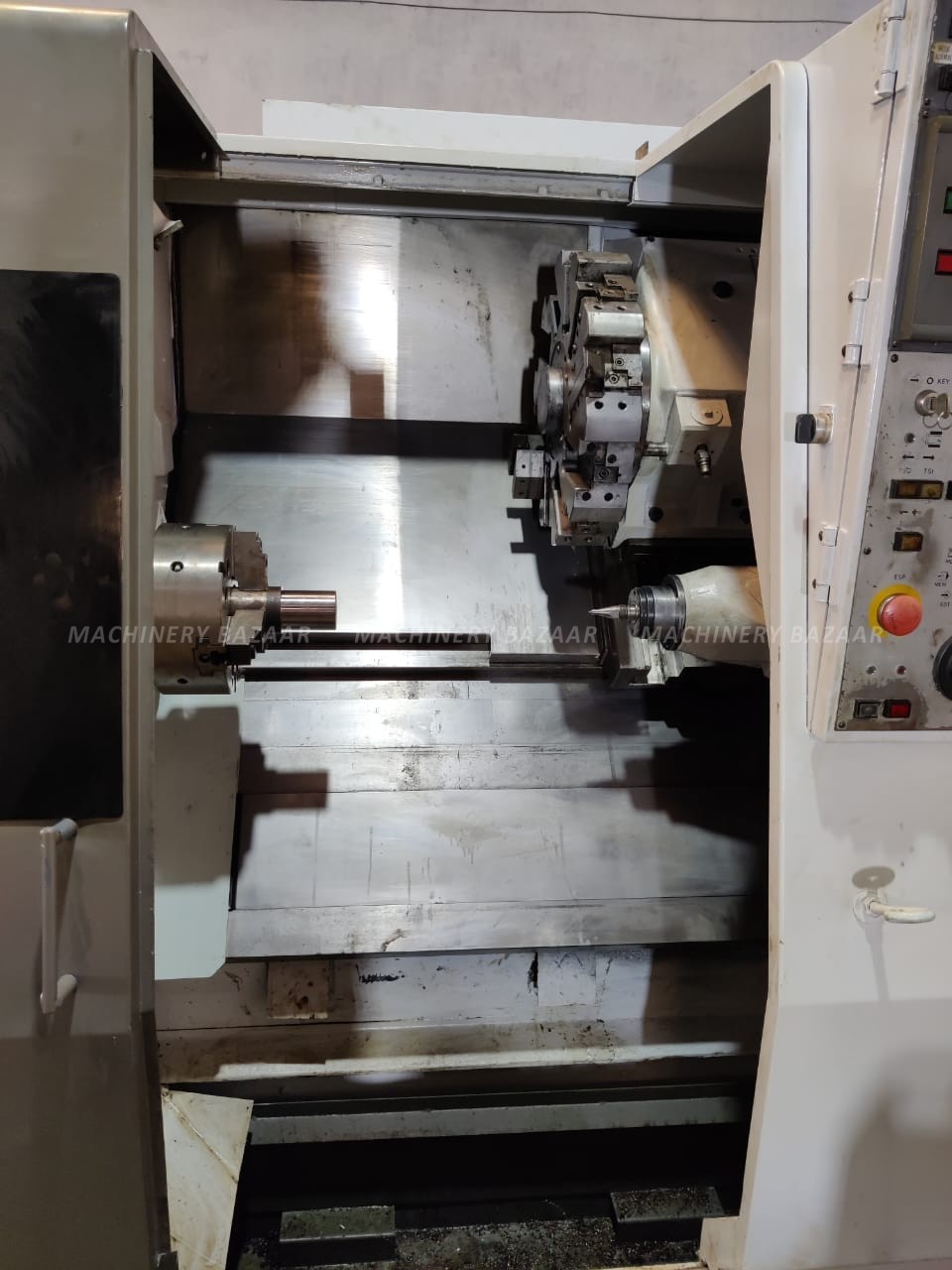

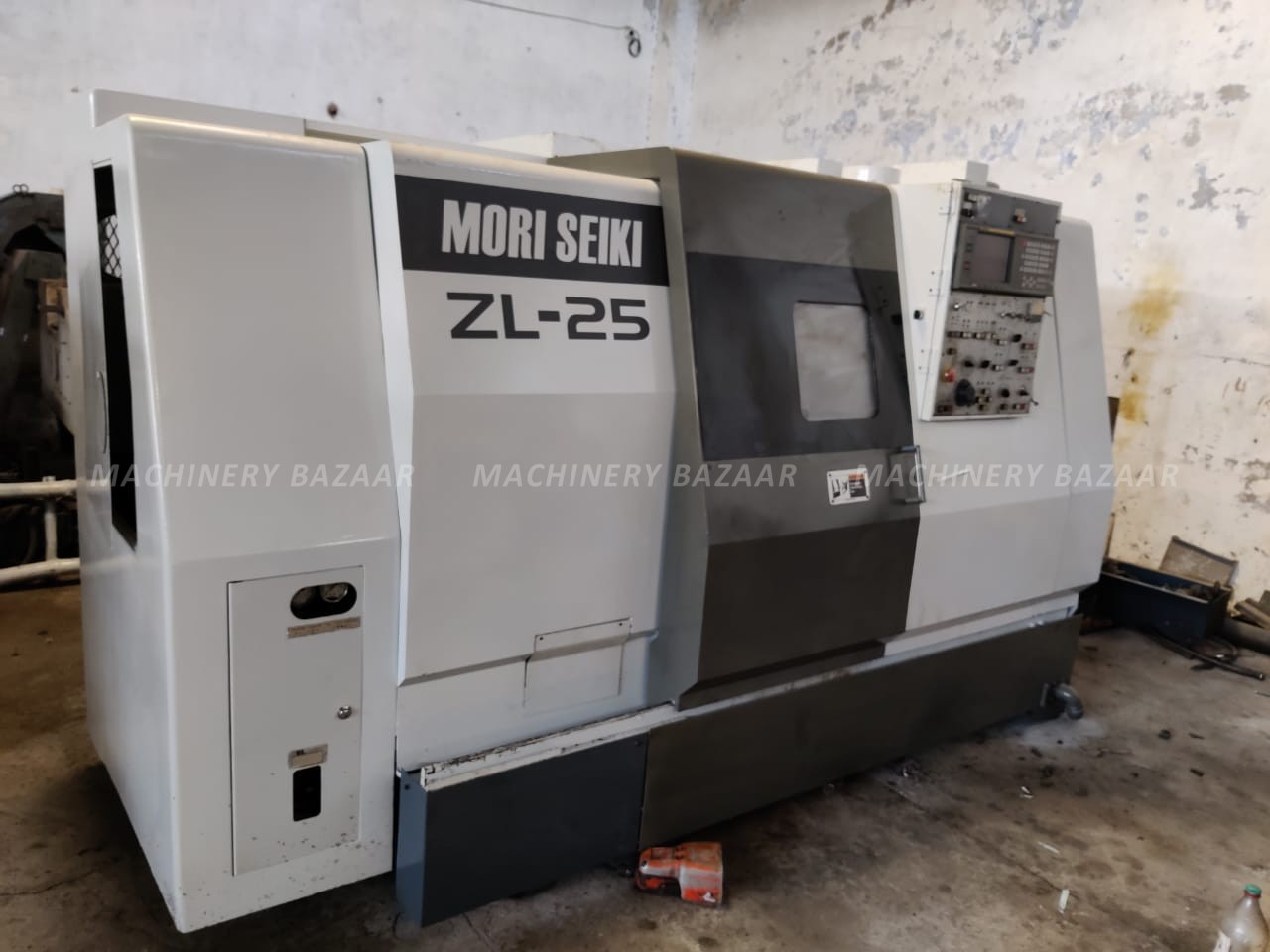

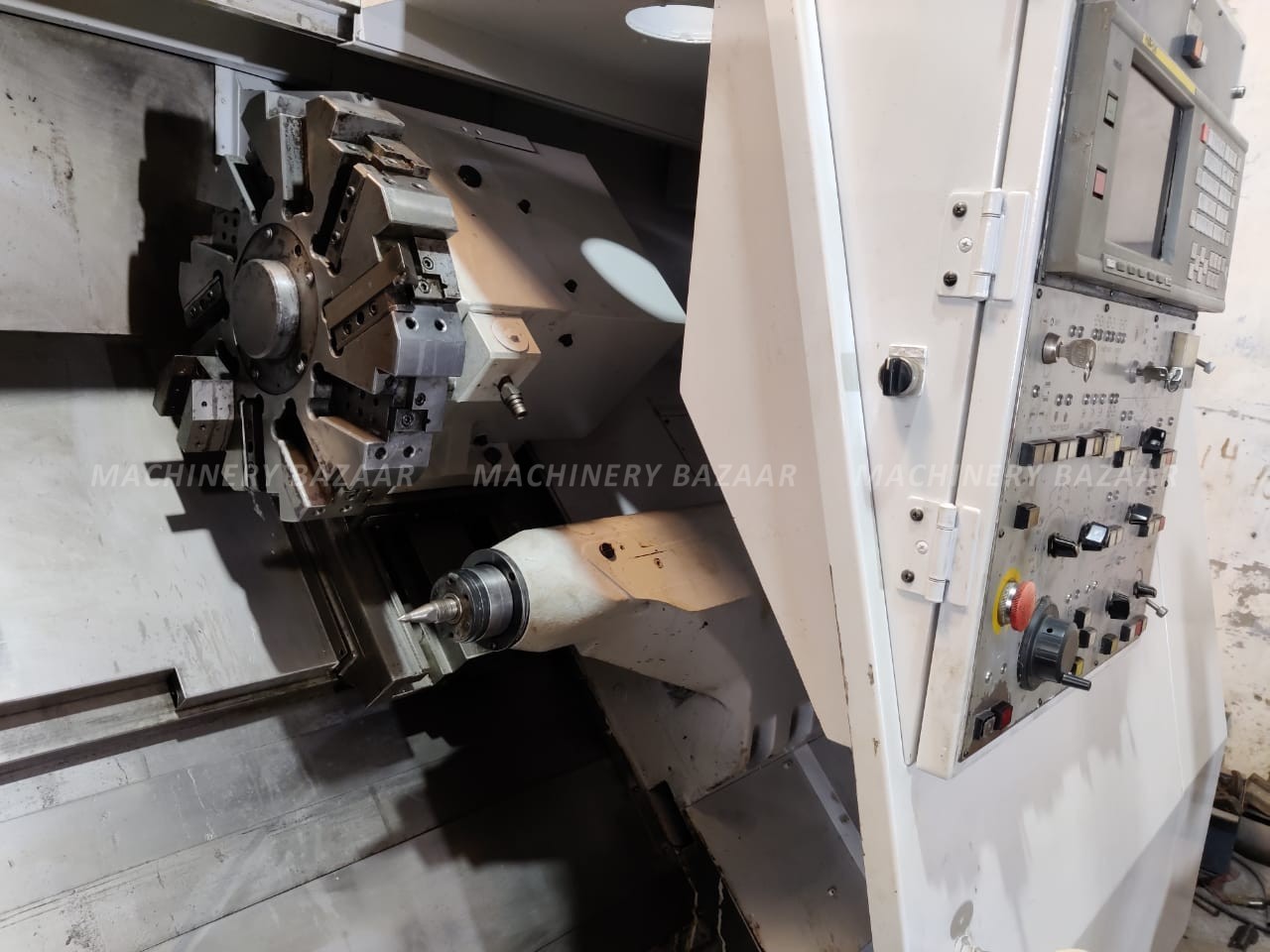

Mori Seiki Model ZL-25A/500
Specifications:
Chuck size 10"
General specifications
Swing over bed 20,5"
Swing over cross slide 13.8"
Between centers 25.4"
Max. Machining length 21.7"
X-axis travel 6.3"
Z-axis travel 23.2"
Spindle speed 3500 RPM
Hole thru spindle 2.4"
Spindle 1.D 4.3"
Shank height for square tool 1.0"
Shank diameter for boring bar Max.2.0"
Rapid feed rate (Z-Axis) 590.6"
Tailstocks quill stroke 3.1"
Electric power supply 40 Kva Machine Weight (approx) 15,400 Lbs
With chip conveyer.
(ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION AND ARE
APPROXIMATION)
